Auto Uniform Carton Sealer - National Packaging Machinery

PGL701W

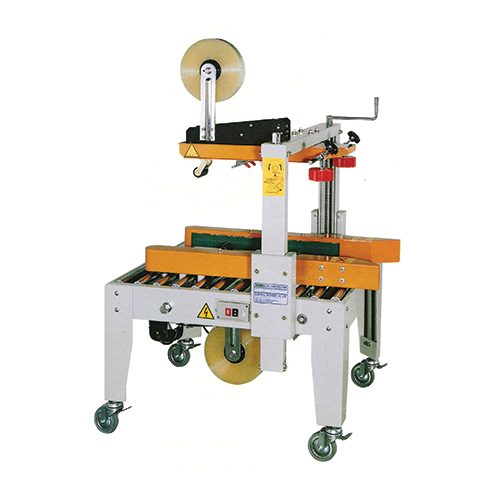

Auto Uniform Carton Sealer

A side-belt driven auto uniform carton sealer, ideal for lightweight, low-profile, and wide cartons. It applies top and bottom tape simultaneously, features interchangeable taping heads, quick size adjustment, and operates up to 8-10 boxes per minute. Its heavy-duty steel frame offers stability and adjustable working height for operator comfort.

FEATURES

This PGL701W is excellent for top and bottom sealing of low profile, lightweight, wide and various cartons
The unit is ideal for operation with an automatic production line
Compact & efficient design
Extensible height frame for elevation of upper tape head mechanism with a range of 400mm, adjusted by crank handle
A right and a left clamping belt ensure an extremely smooth box feed
The top and bottom taping heads are interchangeable and easy to install
Easy tape tension adjustment
Heavy gauge steel plate construction for maximum stability. Treated with high quality paint
Extendable legs allow the table height to be adjusted, with a range of 570mm – 780mm

Industries

Print
Aquaculture
Horticulture
Food
General

SPECIFICATIONS

Carton Size Range:
(L) 150 – Nmm
(W) 100-550mm
(H) 100-500mm

OPP Tape:
48mm
Option: 75mm

Table Height:
570-780mm

Machine Dimension:
(L) 870mm x (W) 930mm x (H) 1330mm

Belt Speed:
18M/50Hz
