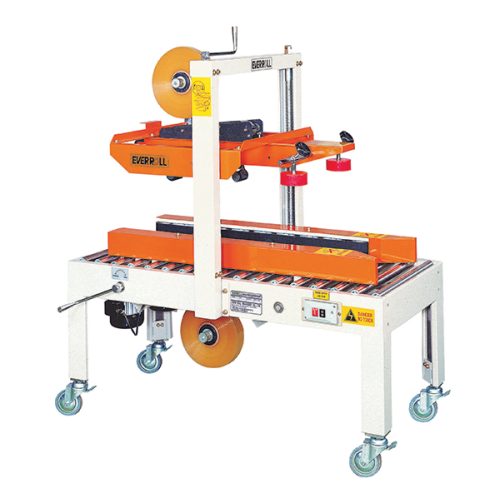

PGL701
Auto Uniform Carton Sealer (Top & Side Belt Drive)

A top and side belt-driven auto uniform carton sealer, ideal for low-profile, small, and lightweight boxes. With adjustable tape tension, crank-operated head height, and operates up to 8-10 boxes per minute, it ensures smooth, reliable operation. Built with heavy-gauge steel, it suits various production line setups.

PGL701

FEATURES

  • This PGL701 is excellent for top and bottom sealing of low profile, small, lightweight boxes
  • The unit is ideal for operation with an automatic production line
  • The top taping head elevation is operated by a crank handle to suit different box sizes
  • A right and left clamping device ensures an extremely smooth box feed
  • PGL701 is available for wider case range
  • The lop and bottom raping heads are easy lo install and change
  • Tape tension can be adjusted
  • Heavy gauge steel plate construction tor maximum stability, treated with enamel paint
  • Extendable legs allow the table height to be adjusted, with a range of 570mm – 780mm (with castors). 450mm – 660mm (less castors)

Industries

  • Print
  • Aquaculture
  • Horticulture
  • Food
  • General

SPECIFICATIONS

Carton Size Range:
(L) 150 – Nmm
(W) 100-340mm
(H) 100-500mm

OPP Tape:
48mm
Option: 75mm

Machine Dimension:
(L) 1230mm x (W) 6820mm x (H) 1330mm

Packing Dimensions:
(L) 1270mm x (W) 720mm x (H) 1320mm

Table Height:
570-780mm
