BTP-733H

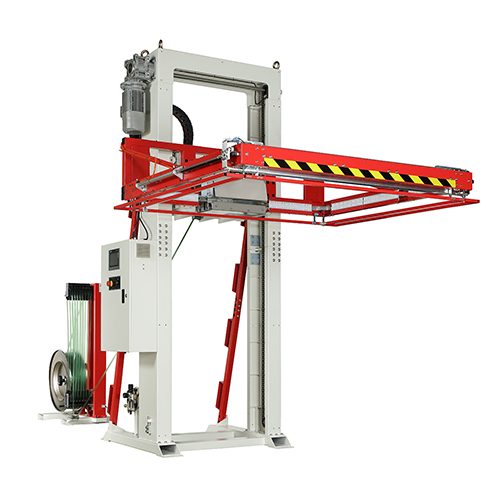

Castor lll Fully Automatic Horizontal Pallet Strapping Machine

A fully automatic horizontal pallet strapping machine designed for consistent, high-speed performance across various end-of-line applications. Equipped with the ARES BTP-733-SH strapping head, Siemens PLC and HMI, and friction weld sealing, it handles up to 60 pallets per hour with reliable, programmable operation and easy integration.

BTP-733H

FEATURES

  • ARES BTP-733-SH strapping head
  • Index strapping head
  • Strap guide arm
  • Safety rack
  • Friction weld sealing technology
  • Siemens PLC and HMI
  • Free access to strap guides
  • Swivel dispenser set
  • Adjustable sealing and cooling time
  • Strap end ejector
  • Preprogram setting
  • Easy to replace strapping head

OPTIONS

  • Floating Head
  • Free standing operation desk (3M)
  • Light tower with low strap sensor
  • Dual channel E-Stop
  • Lower tension range (200 – 1200 N)
  • HMI and PLC mounted on the opposite side
  • Strap program selecting by remote control (4-bit binary input)
  • No safety rack
  • Uplifted support
  • Maximum package height up to 2700mm

Industries

  • Horticulture
  • General

SPECIFICATIONS

Strap Type:
PP / PET strapping

Strap Width:
12 / 15.5 / 19mm

Tension Range:
1100 – 3200 N (standard)
200 – 1200 N (option)

Capacity:
Up to 60 pallets/hour (3 parallel straps)

Minimum Strapping Height:
(a) With conveyor: 160mm above conveyor surface
(b) Without conveyor: 240mm above floor

Maximum Package Height: Standard: 2,200mm
Option: 2,700mm

Strap Core Size:
406 / 200 / 230 / 280mm

Pneumatic Source:
6 bar

Air Consumption:
7.1 litre/cycle
