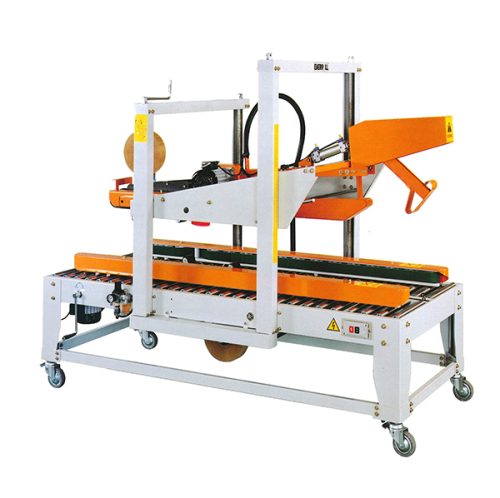

Fully Automatic Flap Folding & Carton Sealer (Top & Side Belt Drive)

PGL705

A top and side belt-driven fully automatic carton sealer with automatic flap folding, ideal for high-volume, uniform carton sealing. Built with a durable steel frame and double arch mechanism, it features fast size adjustment, interchangeable tape cartridges, smooth carton feed, and adjustable table height for operator comfort.

FEATURES

Adjustable top belt & side belts by handle meet a wide variety of carton size
Left and right clamping device ensures an extremely smooth carton feed
Top and bottom tape cartridges are interchangeable and removable instantly
Patented box positioning and holding on device is available on request
Rear flap holder is controlled by limit switch
A programmable controller is available on request, providing convenient operations within established production lines
Belt tension can be easily adjusted
Leg extension allow easy height adjustment of about 180mm
Double Arch Mechanism
Heavy, steel plate construction ensures maximum stability. Stainless steel construction is available on request

Industries

Print
Aquaculture
Horticulture
Food
General

SPECIFICATIONS

Carton Size Range:
(L) 150-650mm
(W) 110-550mm
(H) 100-500mm

OPP Tape:
48mm
Option: 75mm

Machine Dimension:
(L) 2030mm x (W) 930mm x (H) 1670mm

Table Height:
570-780mm
