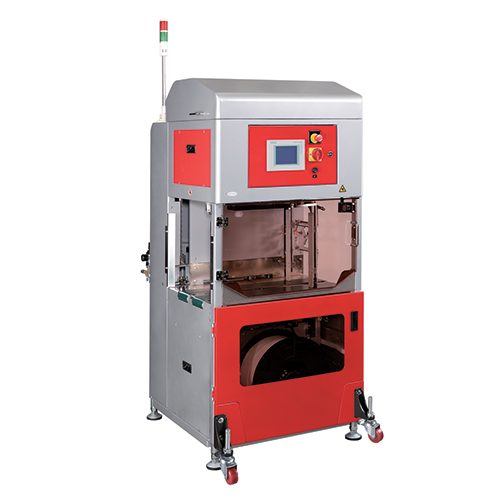

A fully automatic longitudinal strapping machine that straps bundles in the transport direction. It features a compact strapping head, automatic self-adjusting strap chute, electronic tension control, Siemens PLC with touch panel, and handles up to 31 bundles per minute—ideal for high-speed, in-line operations.
FEATURES
OPTIONS
Industries
SPECIFICATIONS
Strap Width:
5 / 6 / 9mm
Tension Range:
1-32kg
Capacity:
Up to 31 bundles/minute
Bundle Size:
Width – 450mm max | 120mm min
Length – 500mm max | 210mm min
Height – 400mm max | 10mm min
Bundle Weight:
Max 25kg
Pneumatic Source:
6 bar
Air Consumption:
8.53 litre/cycle
Table Height:
800 – 900mm
Weight:
475kg
