BTP-502MH

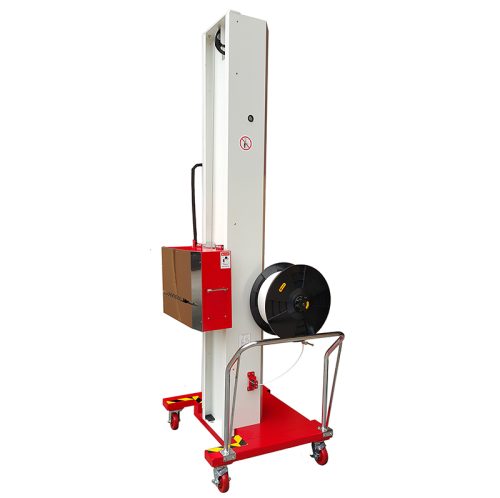

Genesis Semi Automatic Horizontal Pallet Strapping Machine

This mobile and ergonomic semi automatic horizontal pallet strapping machine features a compact strapping head, German-made DC motors, electronic tension control, and adjustable strapping height from 170mm to 2200mm. Ideal for low-volume horizontal pallet applications, it allows strapping without moving the pallet and includes options like battery power and edge protector holder.

BTP-502MH

FEATURES

  • Compact mechanical strapping head
  • Adjustable strapping height
  • Electronic tension control
  • Jog switch
  • Adjustable weld-cooling time
  • Two moving direction

Options

  • Battery power supply (BTP-502MHB)
  • Edge protector holder
  • Handle on the rear for back/forth movement

Industries

  • Aquaculture
  • Horticulture
  • Food
  • General

SPECIFICATIONS

Strap Type:
PP strapping

Strap Width:
9 / 12 / 15.5mm

Tension Range:
8 – 70kg

Strapping Height:
Min 170mm / max 2200mm

Minimum Package Height:
200mm (including pallet)

Weight:
292kg
