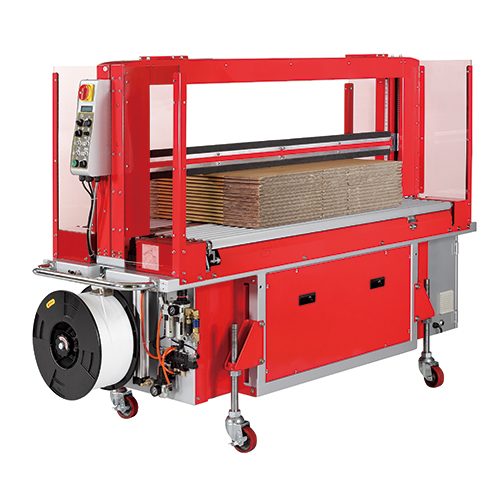

A high-speed fully automatic corrugated strapper featuring a Mercury strapping head, brushless DC motor drive, and Siemens PLC for reliable, low-maintenance performance. Ideal for sheet plants, it offers up to 33 bundles per minute, full-width pneumatic press, jammed-strap ejection, and adjustable table height from 700–1000mm.
FEATURES
OPTIONS
Industries
SPECIFICATIONS
Strap Width:
5 / 6 / 9mm
Tension Range:
1-32kg
Capacity:
Up to 33 bundles/minute (single strap)
Up to 20 bundles/minute (double straps)
(Model: TP-702C-L)
Arch Size:
TP-702C-L 1650mm (W) x 450mm (H)
TP-702C-M 1250mm (W) x 450mm (H)
Minimum Bundle Size:
200mm (W) x 20mm (H) x 300mm (L)
Bundle Weight:
max 40kg
Conveyer Speed:
15-60 m/minute
Table Height:
700 – 1000mm
