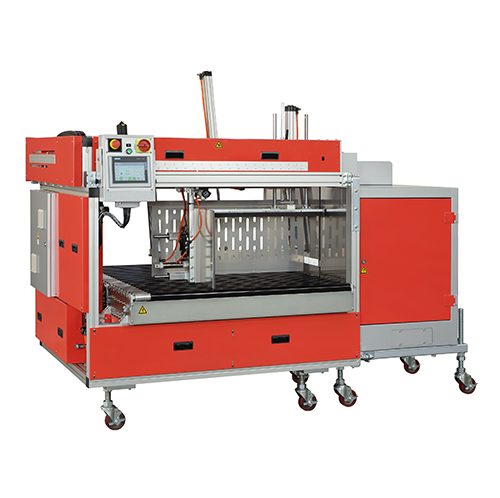

A high-speed fully automatic strapping machine designed for specialty folder gluer boxes, including crash lock and four-corner trays. Featuring a compact strapping head, ascending backstop, Siemens PLC with HMI, and quick changeover, it ensures accurate stacking and damage-free strapping for delicate boxes at up to 23 bundles per minute.
FEATURES
OPTIONS
Industries
SPECIFICATIONS
Strap Width:
5 / 6 / 9 / 12mm
Tension Range:
1-32kg (for 5 / 6 / 9mm)
1-55kg (for 12mm)
Capacity:
Up to 23 bundles/minute (single strap)
Minimum Bundle Size:
1000mm arch width
950mm (W) x 400mm (H) x 1300mm (L)
1200mm arch width
1250mm (W) x 400mm (H) x 1300mm (L)
1600 arch width
1550mm (W) x 400mm (H) x 1300mm (L)
Table Height:
900 – 1000mm
