Mercury High Speed Automatic Strapping Machine - National Packaging Machinery

BTP-702-12

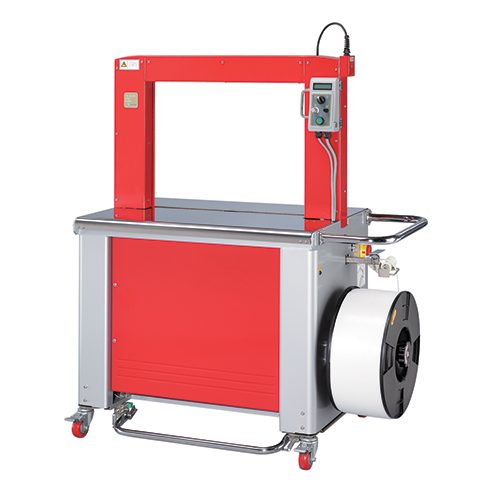

Mercury High Speed Automatic Strapping Machine

A high-speed automatic strapping machine designed for 12mm PP strapping, delivering up to 60 straps per minute. It features a robust strapping head, waist-high auto strap feeding and quick coil change, adjustable table height, and user-friendly controls for efficient, low-maintenance operation.

FEATURES

Robust & compact mechanical strapping head
High speed up to 65 straps per minute
Free access to strap guides (patents registered)
Waist-high auto strap feeding
Waist-high quick coil change (patents registered)
Turnable operating control panel
Auto strap ejector
Dispenser release switch
Sensor controlled heater
Low voltage
Strap end ejector
Front foot bar switch
Adjustable table height between 820mm and 920mm

OPTIONS

Photo-eye switch
Rear foot bar switch
Foot pedal switch
Lower adjustable table height (770mm – 820mm)

Industries

Print
Corrugated
Horticulture
Food
General

SPECIFICATIONS

Strap Width:
12mm

Tension Range:
1-45kg
*Higher tension is on request

Standard Arch Size:
650mm (W) x 500mm (H)
*other arch sizing available on request

Capacity:
Up to 60 cycles/minute

Table Height:
820 – 920mm

Weight:
167kg
