BTP-702SS-12

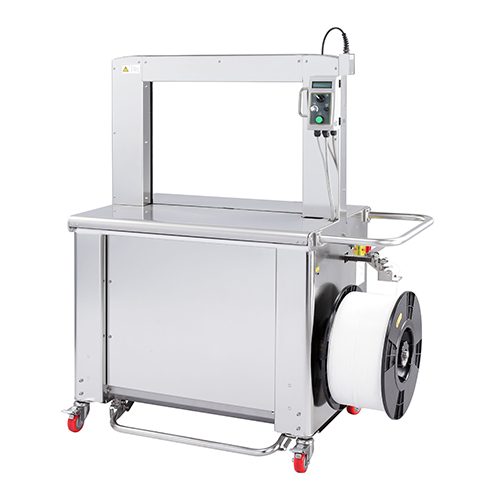

Mercury Stainless Steel Frame High Speed Automatic Strapping Machine

A high-speed automatic strapping machine with a durable SUS 304 stainless steel frame, ideal for wet environments like meat, seafood, and agricultural processing. Designed for 12mm PP strapping, it delivers up to 60 straps per minute with user-friendly features and low-maintenance operation.

BTP-702SS-12

FEATURES

  • Robust & compact mechanical strapping head
  • High speed up to 65 straps per minute
  • Free access to strap guides (patents registered)
  • Waist-high auto strap feeding
  • Waist-high quick coil change (patents registered)
  • Turnable operating control panel
  • Auto strap ejector
  • Dispenser release switch
  • Sensor controlled heater
  • Low voltage
  • Strap end ejector
  • Front foot bar switch
  • Adjustable table height between 820mm and 920mm

OPTIONS

  • Photo-eye switch
  • Rear foot bar switch
  • Foot pedal switch
  • Lower adjustable table height (770mm – 820mm)
  • Selected parts in stainless steel

Industries

  • Aquaculture
  • Horticulture
  • Food
  • General

SPECIFICATIONS

Strap Width:
12mm

Tension Range:
1-45kg
*Higher tension is on request

Standard Arch Size:
650mm (W) x 500mm (H)
*other arch sizing available on request

Capacity:
Up to 60 cycles/minute

Table Height:
820 – 920mm

Weight:
167kg
