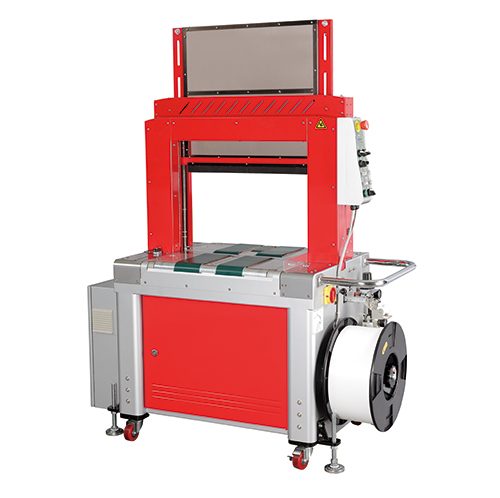

Mercury Transit Fully Automatic Strapping Machine with Press

BTP-702BP

A fully automatic high-speed strapping machine with a built-in pneumatic press, ideal for production and packaging lines. Suitable for 5–12mm PP strapping, it handles up to 36 packages per minute, offering precise tension control, fast strap feeding, and flexible conveyor speed for efficient bundling.

FEATURES

Robust & compact mechanical strapping head
With pneumatic press
Waist-high auto strap feeding
Free access to strap guides (patents registered)
Electronic tension control
Auto strap ejector
Hinged top plates
Multiple strap function for single, double, continuous strapping, or transit mode
Variable conveyor speed between 10 and 60 metres/minute
Up and down stream interlock with complete plug connection
Easy bundle flow direction change
Good to strap small package with min. size 120mm in width and 10mm in height
Adjustable table height between 800mm and 900mm

OPTIONS

Siemens PLC
Light tower with low strap sensor
Energy saving transit with auto sleep mode
Strapping in the center of the bundle
Extension belt-driven table of 200mm on upstream and downstream sides
Lower adjustable table height (750mm – 900mm)

Industries

Corrugated
Food
General

SPECIFICATIONS

Strap Width:
5 / 6 / 9 / 12mm

Tension Range:
1-32kg (for 5 / 6 / 9mm)
1-45kg (for 12mm)
*Higher tension is on request

Standard Arch Size:
650mm (W) x 500mm (H)
*other arch sizing available on request

Capacity:
Up to 36 packages/minute
(Cycle speed up to 65 cycles/minute)

Pneumatic Source:
6 bar

Air Consumption:
7.5 litre/cycle

Table Height:
800 – 900mm

Weight:
250kg
