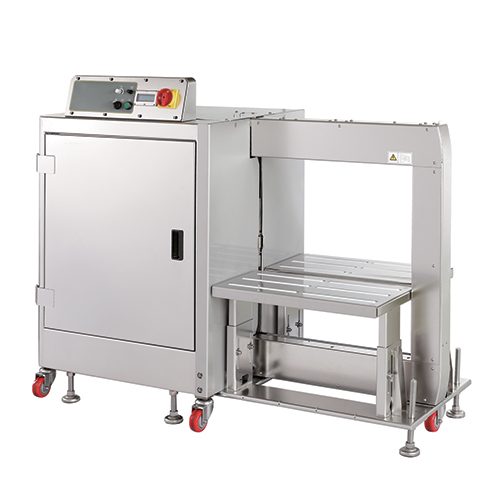

Mercury Wash Down Automatic Side Seal Strapping Machine

BTP-702YM

A high-speed, automatic side-seal strapping machine designed for harsh, wet environments like seafood, meat, and poultry processing. Featuring a stainless steel SUS 304 frame, IP54-rated electronics, and brushless DC motors, it delivers up to 35 packages per minute with waterproof design and downward tension force.

FEATURES

Robust and compact strapping head
High strapping speed up to 35 packages per minute
Water proof design with internal heating device
Control panel with LCD display
Free access to strap guides (patents registered)
Downward tension force
IP54 rated protection of electric control unit
Up and down stream interlock
Inner strap dispenser design
Adjustable table height from 445mm to 645mm

OPTIONS

Siemens PLC control
Light tree alarm with low strap sensor (triple lamp)
Energy saving transit with auto sleep mode
Dual press bar
Side pusher
Small Package

Industries

Aquaculture
Horticulture
Food
General

SPECIFICATIONS

Strap Width:
5 / 6 / 9 / 12mm

Tension Range:
1-32kg (for 5 / 6 / 9mm)
1-45kg (for 12mm)
*Higher tension is on request

Standard Arch Size:
600mm (W) x 650mm (H)

Capacity:
Up to 60 cycles/minute

Table Height:
495 – 645mm

Weight:
281kg
