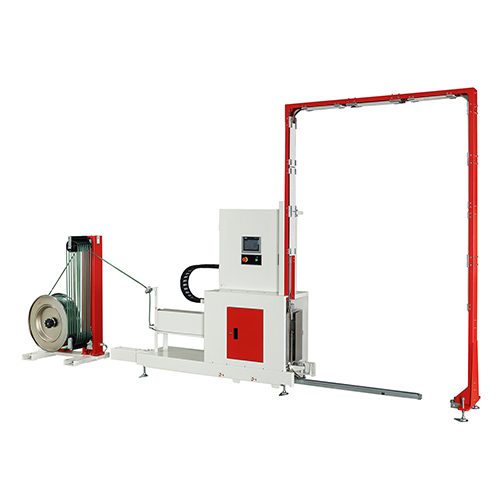

Pollux lll Fully Automatic Vertical Pallet Strapping Machine

BTP-733VLM

A fully automatic vertical pallet strapping machine designed for high-speed, consistent performance across various end-of-line applications. Equipped with the ARES TP-733-SH head, Siemens PLC and HMI, and a movable strap lance, it delivers up to 72 pallets/hour with reliable, cost-efficient operation and seamless integration.

FEATURES

ARES TP-733-SH strapping head
SIEMENS PLC and HMI
Swivel dispenser set
Index strapping head
Movable strap lance
Friction weld sealing Technology
Free access to strap guides
Molular arch
Adjustable sealing and cooling time
Strap end ejector
Easy to replace strapping head

OPTIONS

Floating head
Index head stroke up to 700mm (3M)
Free standing operation desk
Light tower with low strap sensor
Dual channel E-Stop
Lower tension range (200 – 1200 N)
Top press (200kg or 500kg)
HMI mounted on the opposite side
Uplifted support
End of strap signal

Industries

Print
Corrugated
Horticulture
Food
General

SPECIFICATIONS

Strap Type:
PP / PET strapping

Strap Core Size:
406mm

Strap Width:
9 / 12 / 15.5 / 19mm

Tension Range:
1,100 – 3,200 N (standard)
200 – 1,200 N (option)

Capacity:
Up to 72 pallets/hour (2 parallel straps)

Weight:
445kg
