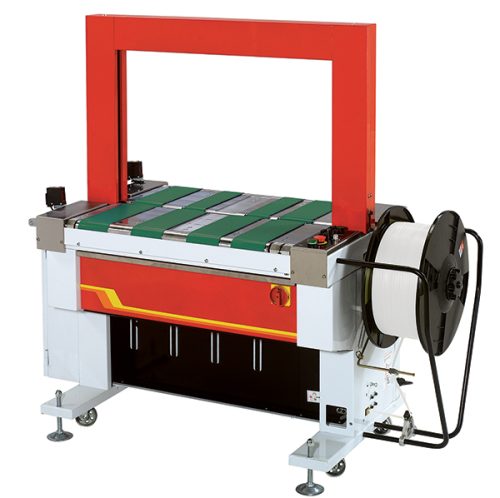

Tauris Transit Fully Automatic Strapping Machine

BTP-601B

A fully automatic belt-driven strapping machine built for reliable general-purpose transit applications. It features a robust strapping head, electronic tension control, multiple strapping modes, and a 30m/min conveyor speed. Easy to integrate, it supports up to 18 packages per minute and offers flexible configuration options.

FEATURES

Reliable and robust strapping head
Auto strap feeding
Electronic tension control
Auto strap ejector
Belt transmission
Hinged top plates
Conveyor speed: 30 metres/minute
Multiple strap function for single, double, continuous strapping, or transit mode
Up and down stream interlock with complete plug connection
Easy bundle flow direction change
Strap end ejector

OPTIONS

Siemens PLC
Variable conveyor speed: from 18 metres/minute to 42 metres/minute
Safety guards
Foot pedal switch

Industries

Horticulture
Food
General

SPECIFICATIONS

Strap Width:
8 / 9 / 12mm

Tension Range:
7-70kg
(requires safety devices to meet CE regulations)

Standard Arch Size:
850mm (W) x 600mm (H)
*other arch sizing available on request

Capacity:
Up to 18 packages/minute (60Hz)
(Cycle speed up to 29 cycles/minute)

Table Height:
825mm

Weight:
325kg
