BTP-CIL

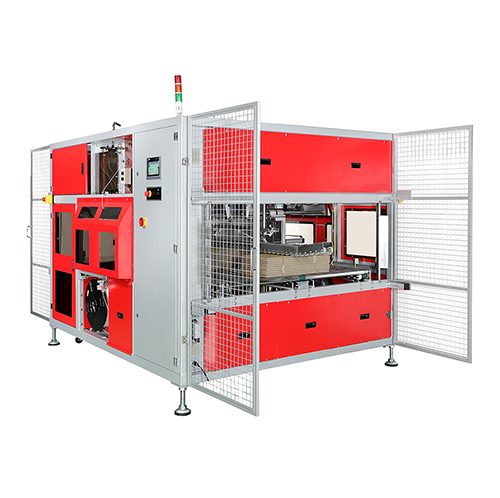

TransCorrLiner Fully Automatic Inline Strapping and Squaring System

A high-speed fully automatic inline squaring and strapping system built to match the speed of top-tier Flexo Folder Gluers and Casemakers. Featuring brushless DC motor drive, Siemens PLC with HMI, and an intelligent self-positioning pusher, it ensures precise, efficient strapping in flute direction at up to 24 bundles/minute.

BTP-CIL

FEATURES

  • Compact & robust strapping head
  • Intelligent pusher optimizes speed (patents registered)
  • Automatic bundle size setup system
  • Independent controlled conveyor
  • Strapping in the flute direction
  • Siemens PLC and HMI
  • Off-center strapping
  • Hot standby mode (twin head model only)
  • Drape-strap feeding system
  • Dual channel e-stop

OPTIONS

  • Powered alignment device
  • Dual dispenser with auto splicer
  • Air conditioner for control box
  • Belt driven conveyor for the last bundle
  • Energy saving transit with auto sleep mode
  • Bus interface for bundle size data transfer from upstream equipment
  • Gravity wheel conveyor

Industries

  • Corrugated
  • General

SPECIFICATIONS

Strap Width:
5 / 6 / 9mm

Tension Range:
1-20kg

Capacity:
Up to 24 bundles/minute
(Model: BTP-CIL-13S & BTP-CIL-13T)

Bundle Weight:
max 30kg

Conveyer Height:
780 – 1080mm

Conveyer Speed:
30-70m/minute
