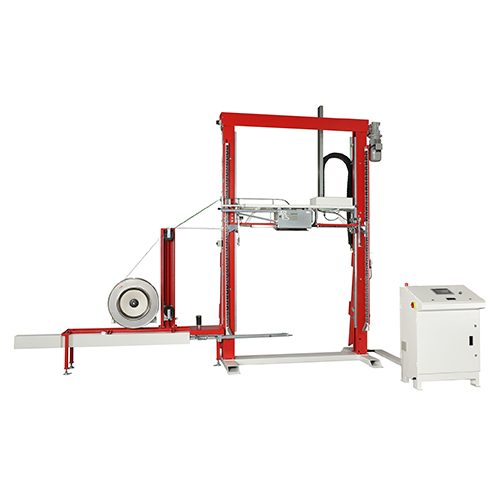

Zelos Fully Automatic Vertical Pallet Strapping Machine

BTP-733VTS

A top-sealing fully automatic vertical pallet strapping machine designed for general and low-height palletized products. Featuring the ARES BTP-733-SH strapping head, Siemens PLC and HMI, and an all-electric drive, it delivers up to 63 pallets/hour with precise control, excellent top detection, and easy end-of-line integration.

FEATURES

ARES BTP-733-SH strapping head
Siemens PLC and HMI
Floating head
Strap can be fed at any height
Friction weld sealing technology
Free access to strap guides
All electric driven design
Strap end ejector
Adjustable speed for strapping head movement
Excellent package top detection
Dual channel e-stop
Preprogram setting for multiple strapping tasks

OPTIONS

Lower tension range (200 – 1200 N)
Light tower with low strap sensor
Air conditioner for electric control cabinet
Adding underfeed channel (patent registered)
Automatic self-adjusting strapping head height for next package
End of strap signal
Uplifted support
Underfeed channel only (remove standard feature “movable lance”)

Industries

Horticulture
Food
General

SPECIFICATIONS

Strap Type:
PP / PET strapping

Strap Core Size:
406mm

Strap Width:
9 / 12 / 15.5 / 19mm

Tension Range:
1,100 – 3,200 N (standard)
200 – 1,200 N (option)

Capacity:
Up to 63 pallets/hour (2 parallel straps)

Maximum Package Height:
350mm (W) x 300mm (H)
